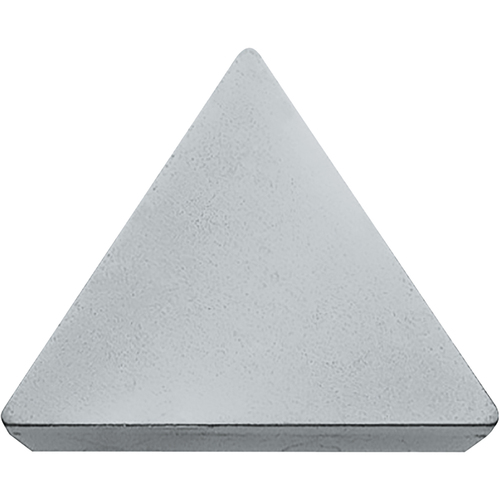

TPU 322 TN610, 1/32″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, TiCN, 60 Degree Triangle, Turning Indexable Insert
Turning Insert; 60 Triangle × 3/8″ IC × 1/32″ Corner Radius ; TN610 ; Cermet ; TiCN
| Applicable Material | | Super-Alloys / Titanium | | Grade | TN610 |
| Application | Boring | Chamfering | External Turning | Facing | Tool Type | Turning Insert |

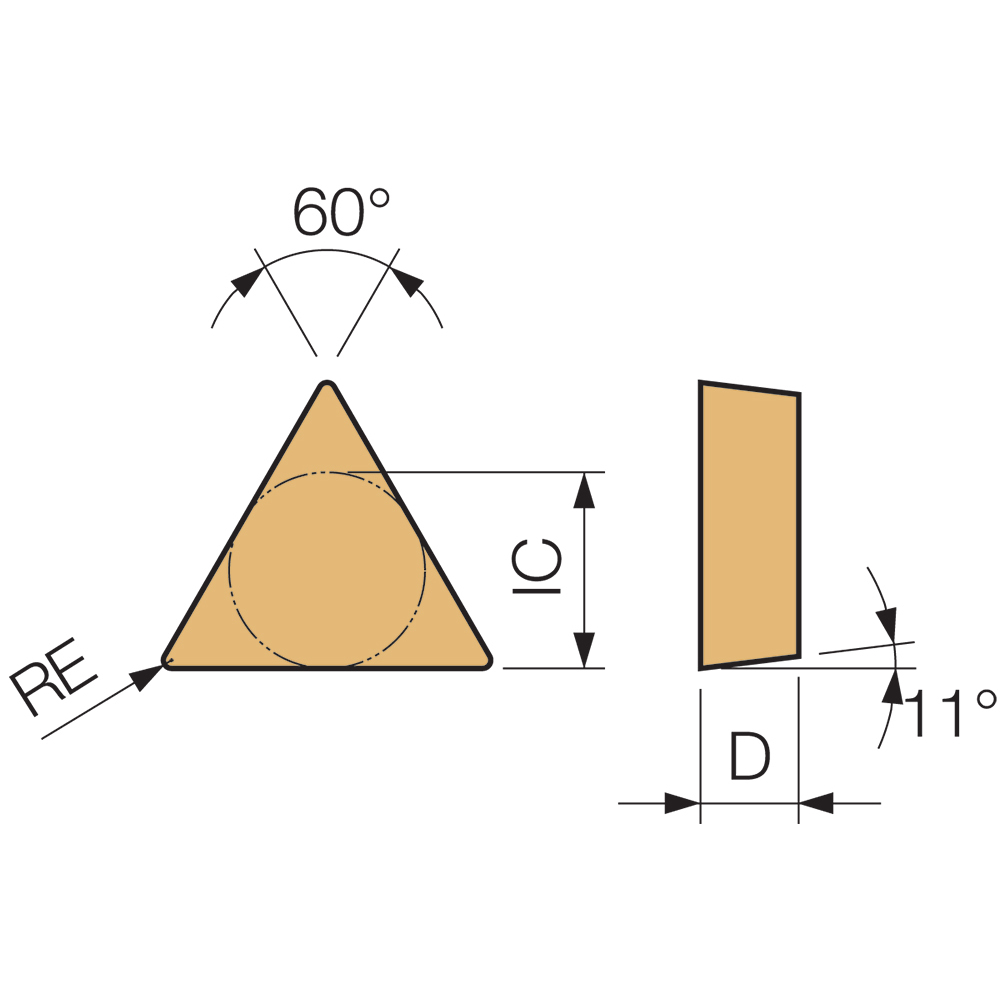

| Insert Style | TPU | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 6 |
| Insert Size | 322 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/8″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Cermet | Series/List # | ISOI |
| Coating | TiCN | Model No | 8864024 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.088
