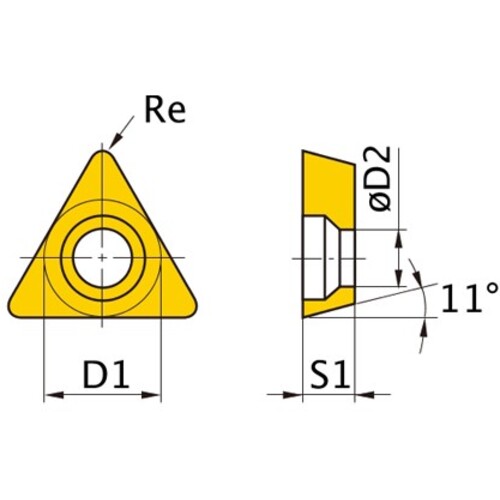

TPGX 220.5 L HTi10, 0.008″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, Turning Indexable Insert
Turning Insert; Triangle x 6.35 mm IC × 0.2 mm Corner Radius ; HTi10 ; Carbide
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Grade | HTi10 |
| Application | Finish Cutting | Fixing Hole Diameter (D1) | 3.5 mm |
| Insert Style | TPGX | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.2 mm | Cutting Direction (HAND) | Left Hand |
| Insert Size | 220.5 | Chip Breaker Type | L |
| Insert Thickness (S) | 3.18 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 6.35 mm | Shape | Triangle |
| Insert Included Angle (EPSR) | 60 Degrees | Series/List # | HTi10 |
| Cutting Edge Material | Carbide | Cutting Edge Effective Length (LE) | 5.4 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
