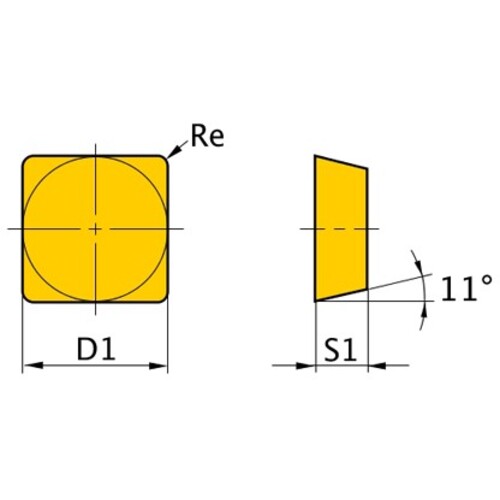

SPMN 422 flat_top UP20M, 1/32″ Corner Radius, 1/8″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Turning Insert; Square x 12.7 mm IC × 0.8 mm Corner Radius ; UP20M ; Carbide
| Applicable Material | | Steel | Stainless Steel | | Grade | UP20M |
| Insert Style | SPMN | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.8 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 422 | Chip Breaker Type | flat_top |
| Insert Thickness (S) | 3.18 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Shape | Square |
| Insert Included Angle (EPSR) | 90 Degrees | Series/List # | UP20M |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
