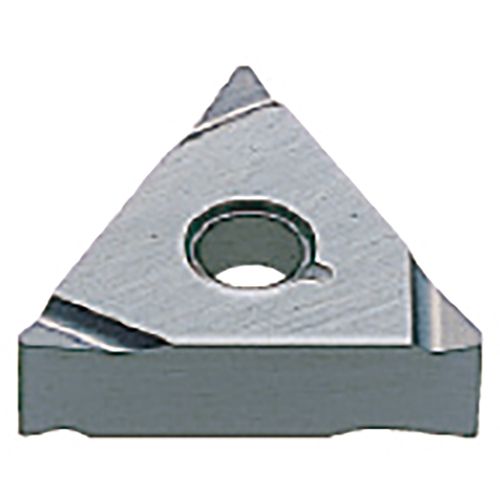

TNGG 330.5 L-F NX2525, 0.2 Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; Triangle x 9.525 mm IC × 0.2 mm Corner Radius ; NX2525 ; Cermet
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | NX2525 |
| Application | Finish Cutting | Fixing Hole Diameter (D1) | 3.81 mm |
| Insert Style | TNGG | Cutting Direction (HAND) | Left Hand |
| Corner Radius (RE) | 0.2 mm | Chip Breaker Type | L-F |
| Insert Size | 330.5 | Measurement Type | Metric |
| Insert Thickness (S) | 4.76 mm | Shape | Triangle |
| Inscribed Circle Diameter (IC) | 9.525 mm | Series/List # | NX2525 |
| Insert Included Angle (EPSR) | 60 Degrees | Cutting Edge Effective Length (LE) | 5.1 mm |
| Cutting Edge Material | Cermet |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
