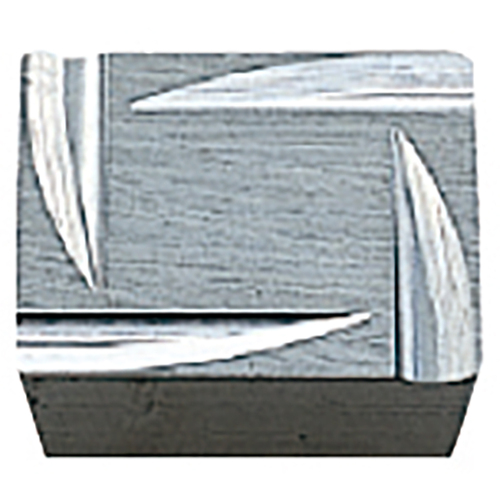

SPGR 321 R UTi20T, 1/64″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; Square x 9.525 mm IC × 0.4 mm Corner Radius ; UTi20T ; Carbide
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | UTi20T |
| Application | Finish Cutting | Clearance Angle Major (AN) | 11 Degrees |
| Insert Style | SPGR | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.4 mm | Chip Breaker Type | R |
| Insert Size | 321 | Measurement Type | Metric |
| Insert Thickness (S) | 3.18 mm | Shape | Square |
| Inscribed Circle Diameter (IC) | 9.525 mm | Series/List # | UTi20T |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Effective Length (LE) | 1.6 mm |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
