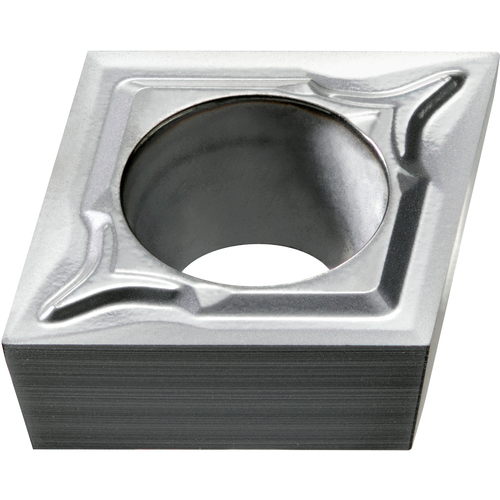

CCGT 21.50.5 LS-P MS6015, 0.008″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, Turning Indexable Insert
Turning Insert; 80 Rhombic × 6.35 mm IC × 0.18 mm Corner Radius ; MS6015 ; Carbide
| Applicable Material | | Steel | Stainless Steel | | Grade | MS6015 |
| Application | Light Cutting | Fixing Hole Diameter (D1) | 2.8 mm |
| Insert Style | CCGT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.18 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 21.50.5 | Chip Breaker Type | LS-P |
| Insert Thickness (S) | 2.38 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 6.35 mm | Shape | 80° Rhombic |
| Insert Included Angle (EPSR) | 80 Degrees | Series/List # | MS6015 |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
