SPMR321 NX2525 INSERT

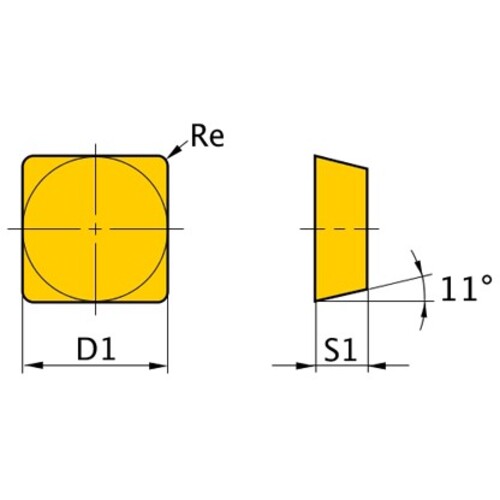

Turning Insert; Square x 9.525 mm IC × 0.4 mm Corner Radius ; NX2525 ; Cermet
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Cutting Edge Material | Cermet |
| Application | Medium Cutting | Grade | NX2525 |
| Insert Style | SPMR | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 321 | Chip Breaker Type | standard |
| Insert Thickness (S) | 3.18 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm | Shape | Square |
| Insert Included Angle (EPSR) | 90 Degrees | Series/List # | NX2525 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
