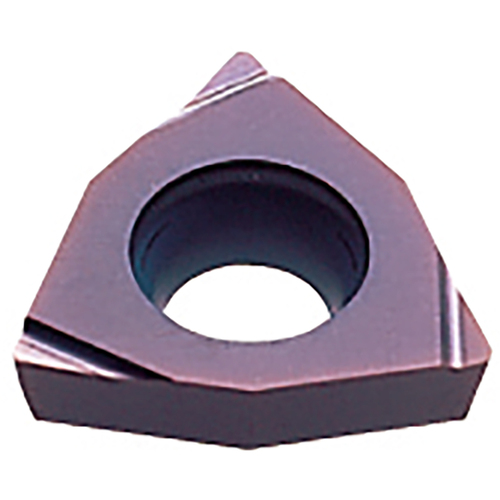

WPGT 321 R- VP15TF, 1/64″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; Trigon x 9.525 mm IC × 0.4 mm Corner Radius ; VP15TF ; Carbide
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | VP15TF |
| Application | Finish Cutting | Fixing Hole Diameter (D1) | 4.4 mm |
| Insert Style | WPGT | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Right Hand |
| Insert Size | 321 | Chip Breaker Type | R-FS |
| Insert Thickness (S) | 3.18 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm | Shape | Trigon |
| Insert Included Angle (EPSR) | 80 Degrees | Series/List # | VP15TF |
| Cutting Edge Material | Carbide | Cutting Edge Effective Length (LE) | 3.2 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
