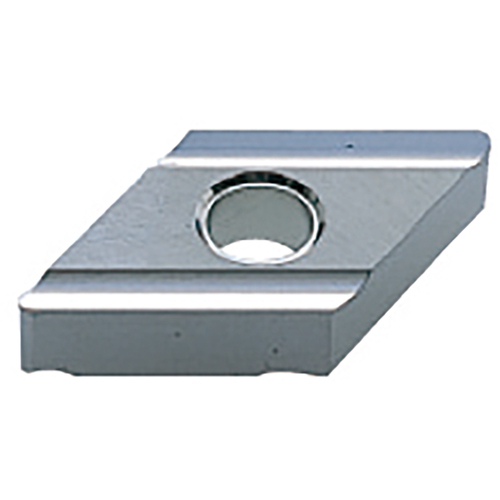

DNGG 431 R NX2525, 1/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Turning Insert; 55 Rhombic × 12.7 mm IC × 0.4 mm Corner Radius ; NX2525 ; Cermet
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | NX2525 |
| Application | Medium Cutting | Fixing Hole Diameter (D1) | 5.16 mm |
| Insert Style | DNGG | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.4 mm | Chip Breaker Type | R |
| Insert Size | 431 | Measurement Type | Metric |
| Insert Thickness (S) | 4.76 mm | Shape | 55° Rhombic |
| Inscribed Circle Diameter (IC) | 12.7 mm | Series/List # | NX2525 |
| Insert Included Angle (EPSR) | 55 Degrees | Cutting Edge Effective Length (LE) | 14.9 mm |
| Cutting Edge Material | Cermet |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
