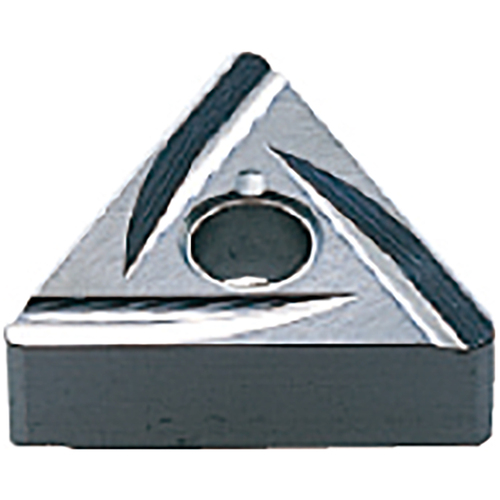

TNGG 222 R NX3035, 1/32″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, Turning Indexable Insert
Turning Insert; Triangle x 6.35 mm IC × 0.8 mm Corner Radius ; NX3035 ; Cermet
| Applicable Material | | Steel | | Grade | NX3035 |
| Application | Medium Cutting | Fixing Hole Diameter (D1) | 2.26 mm |
| Insert Style | TNGG | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.8 mm | Chip Breaker Type | R |
| Insert Size | 222 | Measurement Type | Metric |
| Insert Thickness (S) | 3.18 mm | Shape | Triangle |
| Inscribed Circle Diameter (IC) | 6.35 mm | Series/List # | NX3035 |
| Insert Included Angle (EPSR) | 60 Degrees | Cutting Edge Effective Length (LE) | 2.7 mm |
| Cutting Edge Material | Cermet |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
