VCMT 1.51.50.5 FV NX3035, 0.2 Corner Radius, 3/32″ Thick, 3/16″ Inscribed Circle, Turning Indexable Insert

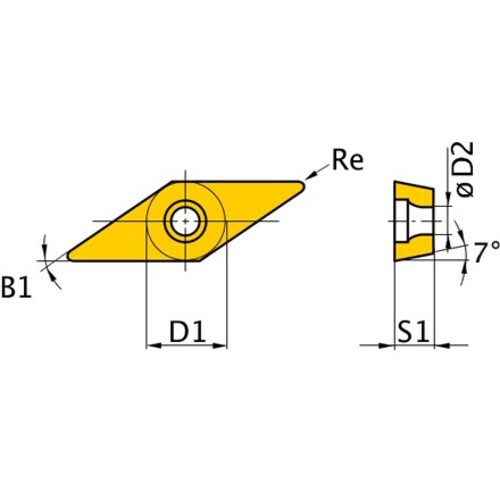

Turning Insert; 35 Rhombic × 4.76 mm IC × 0.2 mm Corner Radius ; NX3035 ; Cermet
| Applicable Material | | Steel | | Grade | NX3035 |
| Application | Finish Cutting | Fixing Hole Diameter (D1) | 2.4 mm |
| Insert Style | VCMT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.2 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 1.51.50.5 | Chip Breaker Type | FV |
| Insert Thickness (S) | 2.38 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 4.76 mm | Shape | 35° Rhombic |
| Insert Included Angle (EPSR) | 35 Degrees | Series/List # | NX3035 |
| Cutting Edge Material | Cermet |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
