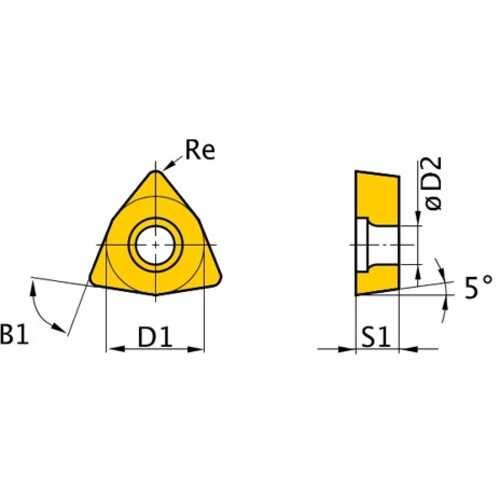

WBGT 1.51.50.5 R-F NX2525, 0.2 Corner Radius, 3/32″ Thick, 3/16″ Inscribed Circle, Turning Indexable Insert
Turning Insert; Trigon x 4.76 mm IC × 0.2 mm Corner Radius ; NX2525 ; Cermet
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | NX2525 |
| Application | Finish Cutting | Fixing Hole Diameter (D1) | 2.3 mm |
| Insert Style | WBGT | Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 0.2 mm | Cutting Direction (HAND) | Right Hand |
| Insert Size | 1.51.50.5 | Chip Breaker Type | R-F |
| Insert Thickness (S) | 2.38 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 4.76 mm | Shape | Trigon |
| Insert Included Angle (EPSR) | 80 Degrees | Series/List # | NX2525 |
| Cutting Edge Material | Cermet | Cutting Edge Effective Length (LE) | 2.1 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
