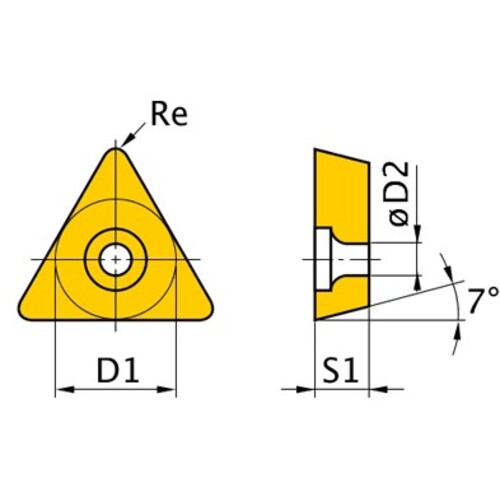

TCGT 1.211 L-F NX2525, 1/64″ Corner Radius, 1/16″ Thick, 3.97 Inscribed Circle, Turning Indexable Insert
Turning Insert; Triangle x 3.97 mm IC × 0.4 mm Corner Radius ; NX2525 ; Cermet
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | NX2525 |
| Application | Finish Cutting | Fixing Hole Diameter (D1) | 2.3 mm |
| Insert Style | TCGT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Left Hand |
| Insert Size | 1.211 | Chip Breaker Type | L-F |
| Insert Thickness (S) | 1.59 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 3.97 mm | Shape | Triangle |
| Insert Included Angle (EPSR) | 60 Degrees | Series/List # | NX2525 |
| Cutting Edge Material | Cermet | Cutting Edge Effective Length (LE) | 3.2 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
