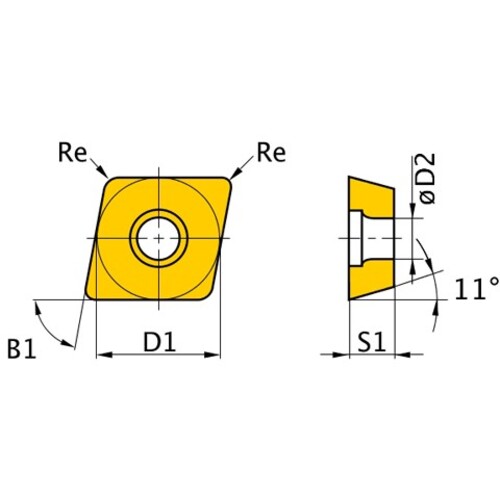

CPMH 2.51.51 L-F NX2525, 1/64″ Corner Radius, 3/32″ Thick, 5/16″ Inscribed Circle, Turning Indexable Insert
Turning Insert; 80 Rhombic × 7.94 mm IC × 0.4 mm Corner Radius ; NX2525 ; Cermet
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | NX2525 |
| Application | Finish Cutting | Fixing Hole Diameter (D1) | 3.5 mm |
| Insert Style | CPMH | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Left Hand |
| Insert Size | 2.51.51 | Chip Breaker Type | L-F |
| Insert Thickness (S) | 2.38 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 7.94 mm | Shape | 80° Rhombic |
| Insert Included Angle (EPSR) | 80 Degrees | Series/List # | NX2525 |
| Cutting Edge Material | Cermet | Cutting Depth Maximum (CDX) | 1 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
