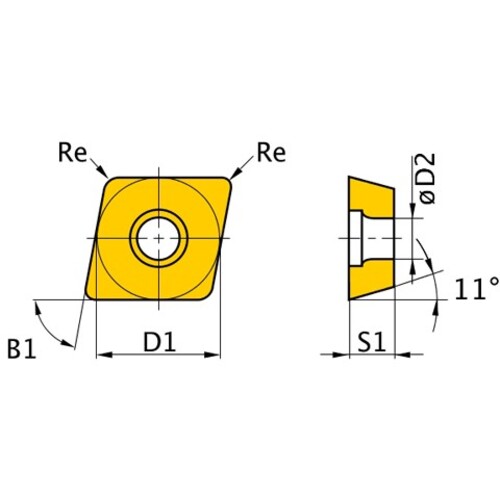

CPMX 321 standard NX2525, 1/64″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; 80 Rhombic × 9.525 mm IC × 0.4 mm Corner Radius ; NX2525 ; Cermet
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | NX2525 |
| Application | Medium Cutting | Fixing Hole Diameter (D1) | 4.6 mm |
| Insert Style | CPMX | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 321 | Chip Breaker Type | standard |
| Insert Thickness (S) | 3.18 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm | Shape | 80° Rhombic |
| Insert Included Angle (EPSR) | 80 Degrees | Series/List # | NX2525 |
| Cutting Edge Material | Cermet |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
