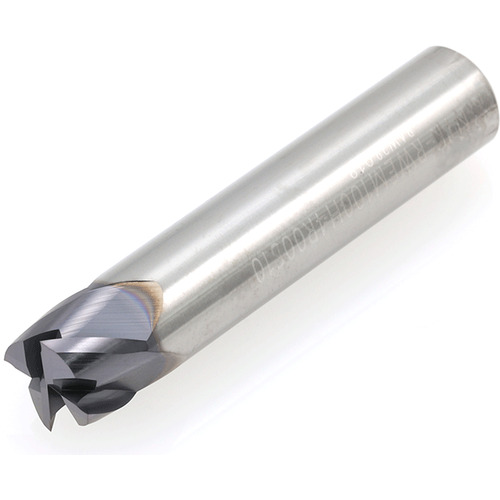

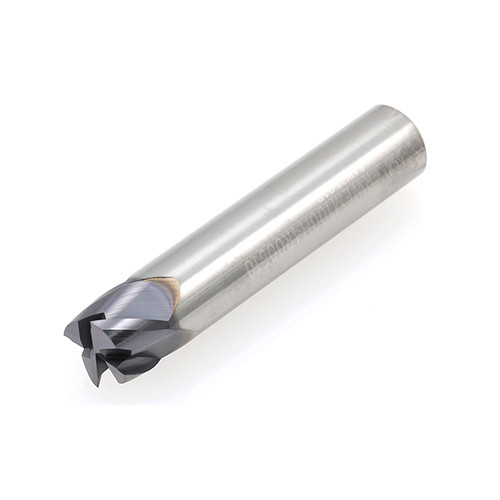

RWEM080H4R00S07 AC3
SQ End Mill; 0.315″ Dia. × 0.2362″ LOC × 0.276″ Shank Dia. ; 0″ RE ; 4 FL ; Carbide ; TiAlCrN-TiAlN

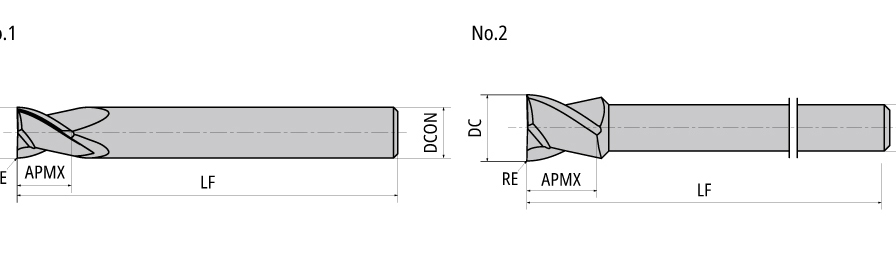

| Cutting Diameter (DC) | 0.315″ | Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 0.276″ | Application | | Endmill | |
| Depth of Cut Maximum (APMX) | 0.2362″ | Corner Radius (RE) | 0″ |
| Cutting Edge Material | Carbide | Grade | AC3 |
| Coating | TiAlCrN-TiAlN | Peripheral Effective Cutting Edge Count (ZEFP) | 4″ |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 35 Degrees | Measurement Type | Inch |
| End Shape | Corner Radius |
Product Features
| Country of Origin | Taiwan |
Shipping Info
Package Weight
0.5
