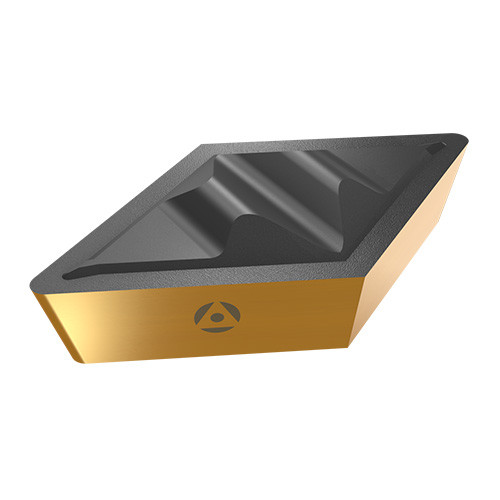

DPGR-432 GP3R
Turning Insert; DPGR-432 INSERT GP3R ; 1/2″ IC ; 0.031″ Corner Radius ; Right Hand ; TiN
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | | Tool Type | Profiling Insert |
| Application | | Int Ext Profiling | | Clearance Angle Major (AN) | 11 Degrees |
| Insert Style | DPGR | Number of Cutting Edges | 3 |
| Corner Radius (RE) | 0.031″ | Cutting Direction (HAND) | Right Hand |
| Insert Size | 432 | Quantity | 10 |
| Insert Thickness (S) | 0.188″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2″ | Series/List # | ISOI |
| Insert Included Angle (EPSR) | 60 Degrees | Insert Width (W1) | 1/2″ |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiN | Model No | 8866423 |
| Grade | GP3R |
Product Features
| Family Description | 55° Diamond Profiling insert for Internal and External applications | Country of Origin | USA |
Shipping Info
Package Weight
0.001
