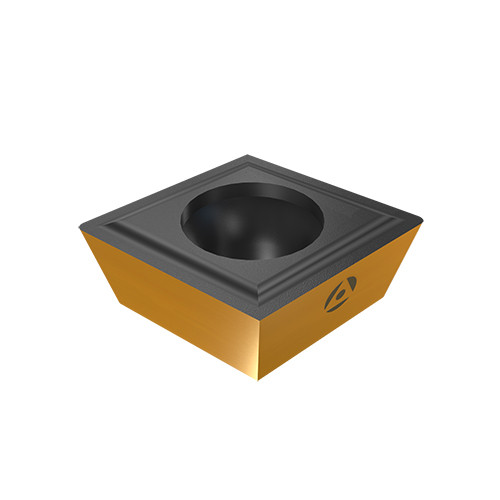

CPGM 32.51 AC50C
Turning Insert; CPGM 32.51 INSERT AC50C ; 3/8″ IC ; 0.015″ Corner Radius ; TiAlN
| Applicable Material | | Steel | Stainless Steel | | Grade | AC50C |
| Application | | Int. Ext. Profiling | | Fixing Hole Diameter (D1) | 0.173″ |
| Insert Style | CPGM | Tool Type | Profiling Insert |
| Corner Radius (RE) | 0.015″ | Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 32.51 | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.156″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Series/List # | ISOI |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN | Model No | 8866423 |
Product Features
| Family Description | Positive 80° Rhombic 0.375″ IC Inserts for Internal and External Profiling Applications | Country of Origin | USA |
Shipping Info
Package Weight
0.000
