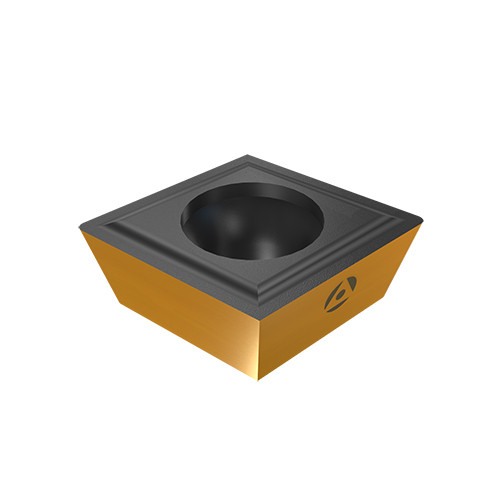

CPGM 21.52 AC25R
Turning Insert; CPGM 21.52 INSERT AC25R ; 1/4″ IC ; 0.031″ Corner Radius ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AC25R |
| Application | | Int. Ext. Profiling | | Fixing Hole Diameter (D1) | 0.11″ |
| Insert Style | CPGM | Tool Type | Profiling Insert |
| Corner Radius (RE) | 0.031″ | Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 21.52 | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.094″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/4″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Series/List # | ISOI |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN | Model No | 8866423 |
Product Features
| Family Description | Positive 80° Rhombic 0.250″ IC Inserts for Internal and External Profiling Applications | Country of Origin | USA |
Shipping Info
Package Weight
0.000
