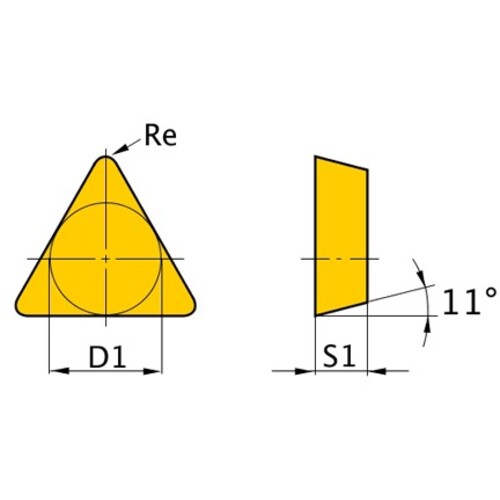

TPMN 323 flat_top UP20M, 3/64″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; Triangle x 9.525 mm IC × 1.2 mm Corner Radius ; UP20M ; Carbide
| Applicable Material | | Steel | Stainless Steel | | Grade | UP20M |
| Insert Style | TPMN | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1.2 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 323 | Chip Breaker Type | flat_top |
| Insert Thickness (S) | 3.18 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm | Shape | Triangle |
| Insert Included Angle (EPSR) | 60 Degrees | Series/List # | UP20M |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
