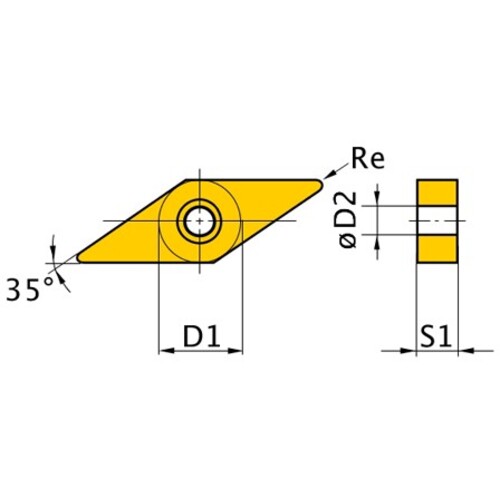

VNMG 331 MS UP20M, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; 35 Rhombic × 9.525 mm IC × 0.4 mm Corner Radius ; UP20M ; Carbide
| Applicable Material | | Steel | Stainless Steel | | Cutting Edge Material | Carbide |
| Application | Medium Cutting | Grade | UP20M |
| Insert Style | VNMG | Fixing Hole Diameter (D1) | 3.81 mm |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 331 | Chip Breaker Type | MS |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm | Shape | 35° Rhombic |
| Insert Included Angle (EPSR) | 35 Degrees | Series/List # | UP20M |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
