WNMG 431 SW NX2525, 1/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Turning Insert; Trigon x 12.7 mm IC × 0.4 mm Corner Radius ; NX2525 ; Cermet
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Cutting Edge Material | Cermet |
| Application | Light Cutting | Grade | NX2525 |

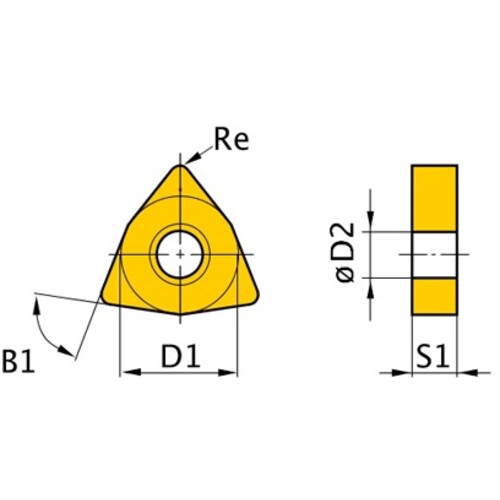

| Insert Style | WNMG | Fixing Hole Diameter (D1) | 5.16 mm |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 431 | Chip Breaker Type | SW |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Shape | Trigon |
| Insert Included Angle (EPSR) | 80 Degrees | Series/List # | NX2525 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
