TCGW 1.81.51 flat_top BC8110, 1/64″ Corner Radius, 3/32″ Thick, 7/32″ Inscribed Circle, Turning Indexable Insert
Turning Insert; Triangle x 5.56 mm IC × 0.4 mm Corner Radius ; BC8110 ; CBN

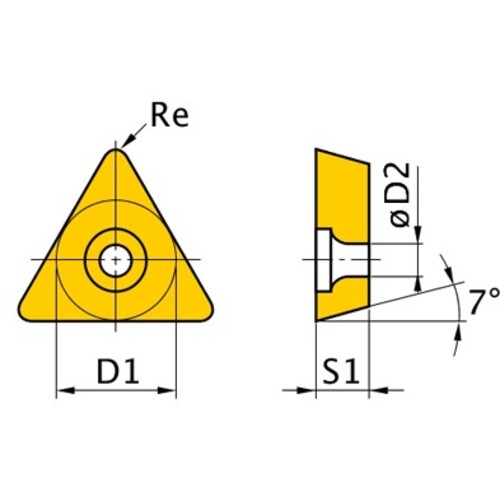

| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 2.5 mm |
| Insert Style | TCGW | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 1.81.51 | Chip Breaker Type | flat_top |
| Insert Thickness (S) | 2.38 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 5.56 mm | Shape | Triangle |
| Insert Included Angle (EPSR) | 60 Degrees | Series/List # | BC8110 |
| Cutting Edge Material | CBN | Cutting Edge Effective Length (LE) | 1.6 mm |
| Grade | BC8110 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
