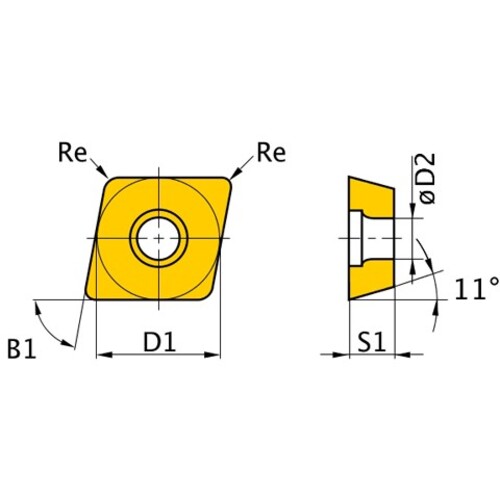

CPGB 322 flat_top BC8110, 1/32″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; 80 Rhombic × 9.525 mm IC × 0.8 mm Corner Radius ; BC8110 ; CBN
| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 4.5 mm |
| Insert Style | CPGB | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.8 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 322 | Chip Breaker Type | flat_top |
| Insert Thickness (S) | 3.18 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm | Shape | 80° Rhombic |
| Insert Included Angle (EPSR) | 80 Degrees | Series/List # | BC8110 |
| Cutting Edge Material | CBN | Cutting Edge Effective Length (LE) | 2.1 mm |
| Grade | BC8110 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
