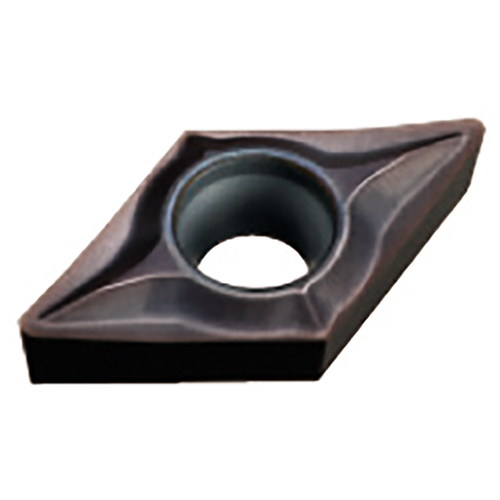

DCGT 32.51 SMG MS6015, 1/64″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; 55 Rhombic × 9.525 mm IC × 0.38 mm Corner Radius ; MS6015 ; Carbide
| Applicable Material | | Steel | Stainless Steel | | Grade | MS6015 |
| Application | Medium Cutting | Fixing Hole Diameter (D1) | 4.4 mm |
| Insert Style | DCGT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.38 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 32.51 | Chip Breaker Type | SMG |
| Insert Thickness (S) | 3.97 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm | Shape | 55° Rhombic |
| Insert Included Angle (EPSR) | 55 Degrees | Series/List # | MS6015 |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
