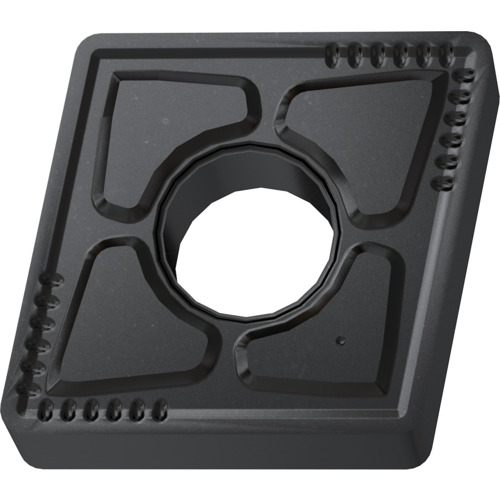

CNMG432-KR
Turning Insert; Rhombic 80 ; 0.472″ Length × 1/2″ IC × 1/32″ Corner Radius ; YG3010 ; Carbide ; | Al2O3 | TiCN |
| Applicable Material | | Steel | Cast Iron | | Tool Type | Turning Negative Insert |
| Insert Style | CNMG | Depth of Cut Maximum (APMX) | 5″ |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.472″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | KR |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | Rhombic 80° |
| Coating | | Al2O3 | TiCN | | Series/List # | CNMG |
| Grade | YG3010 | Cutting Edge Effective Length (LE) | 0.472″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4
Package Width
1.75
Package Height
0.625
Package Weight
0.025
