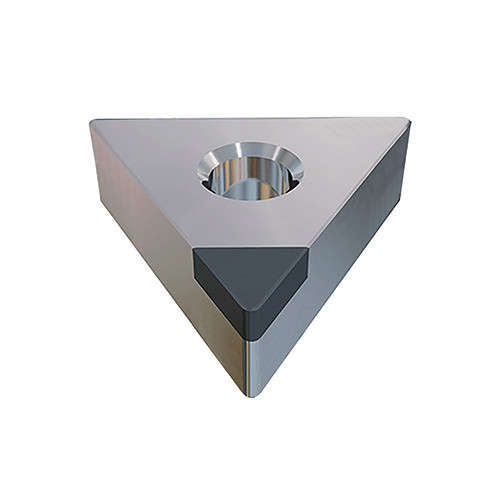

TNGA-432 AP 0420A CB200
Turning Insert; 60 Triangle × 3/8″ IC × 1/64″ Corner Radius ; CB200 ; Carbide ; MEGACOAT NANO PLUS
| Application | | Int. Ext. CBN Hard Turning | | Tool Type | Turning Insert |
| Corner Radius (RE) | 0.031″ | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 0.187″ | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | PCBN | Series/List # | ISOI |
| Coating | Uncoated | Body Material | Carbide |
| Grade | CB200 | Model No | 8866423 |
| Fixing Hole Diameter (D1) | 0.203″ |
Product Features
| Family Description | Neutral 60° Triangle Single CBN Tip Inserts for Internal and External Hard Turning Applications | Country of Origin | USA |
Shipping Info
Package Weight
0.000
