TPGT 18152 AP PDL010, 1/32″ Corner Radius, 3/32″ Thick, 7/32″ Inscribed Circle, C, 60 Degree Triangle, Turning Indexable Insert
Turning Insert; 60 Triangle × 7/32″ IC × 1/32″ Corner Radius ; PDL010 ; Carbide ; DLC

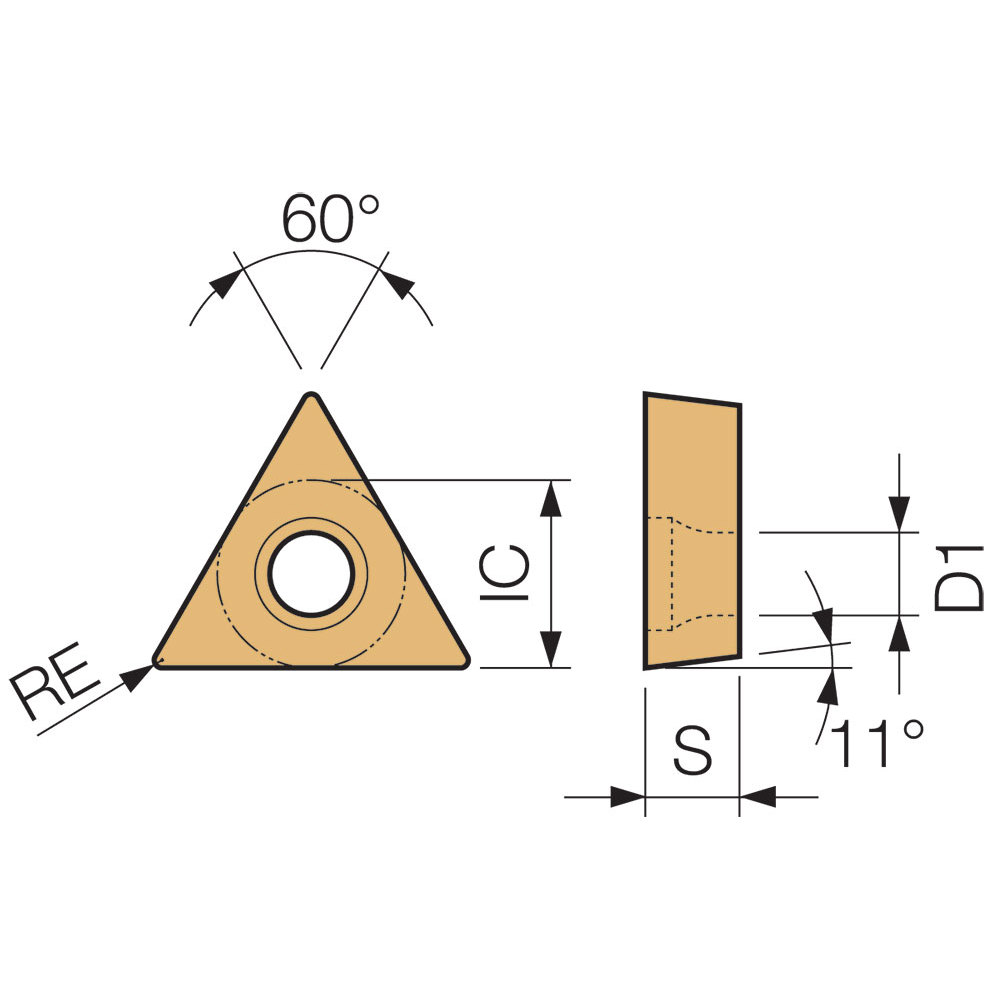

| Applicable Material | | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 0.1181″ |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing | Tool Type | Turning Insert |
| Insert Style | TPGT | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 3 |
| Insert Size | 18152 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ | Chip Breaker Type | AP |
| Inscribed Circle Diameter (IC) | 7/32″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | DLC | Series/List # | ISOI |
| Grade | PDL010 | Model No | 8864440 |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
.048
