WNGG 432 AH PDL010, 1/32″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, C, 80 Degree Trigon, Turning Indexable Insert
Turning Insert; 80 Trigon × 1/2″ IC × 1/32″ Corner Radius ; PDL010 ; Carbide ; DLC

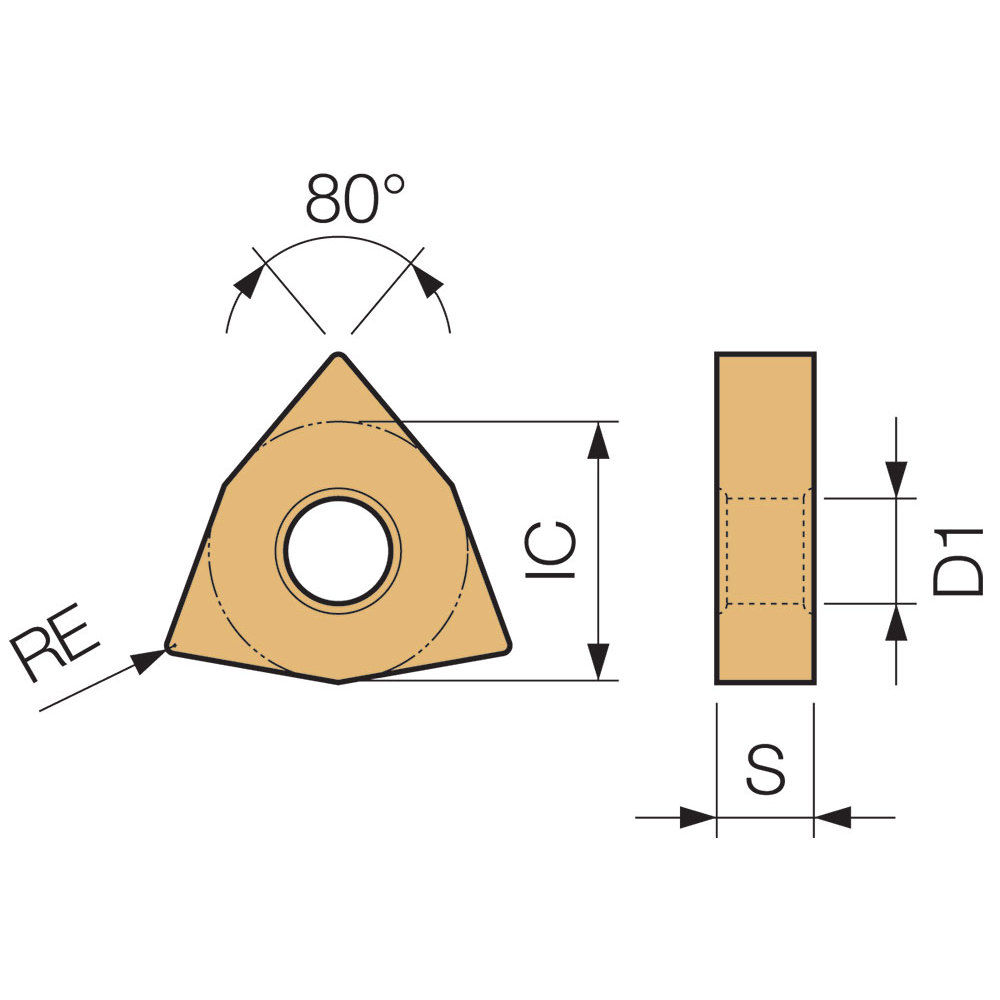

| Applicable Material | | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 0.2032″ |
| Application | Boring | External Turning | Facing | Internal Facing | Tool Type | Turning Insert |
| Insert Style | WNGG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 6 |
| Insert Size | 432 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | AH |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Trigon |
| Coating | DLC | Series/List # | ISOI |
| Grade | PDL010 | Model No | 8860828 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.230
