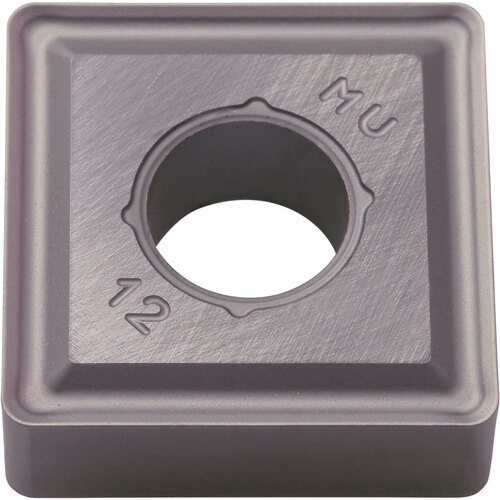

SNMG 643 MU PR1535, 3/64″ Corner Radius, 1/4″ Thick, 3/4″ Inscribed Circle, MEGACOAT NANO, 90 Degree Square, Turning Indexable Insert
Turning Insert; Square x 3/4″ IC × 3/64″ Corner Radius ; PR1535 ; Carbide ; MEGACOAT NANO
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.3126″ |
| Application | Boring | Chamfering | External Turning | Facing | Tool Type | Turning Insert |
| Insert Style | SNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 3/64″ | Number of Cutting Edges | 8 |
| Insert Size | 643 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ | Chip Breaker Type | MU |
| Inscribed Circle Diameter (IC) | 3/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | MEGACOAT NANO | Series/List # | ISOI |
| Grade | PR1535 | Model No | 8866510 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.679
