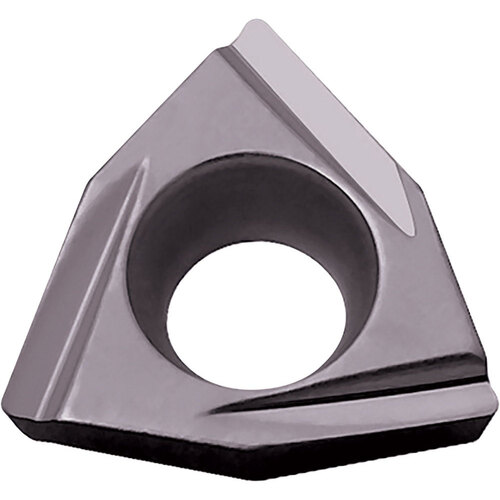

WPGT 21505 Y PR930, 0.008″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, TiCN, 80 Degree Trigon, Turning Indexable Insert
Turning Insert; 80 Trigon × 1/4″ IC × 0.008″ Corner Radius ; PR930 ; Carbide ; TiCN

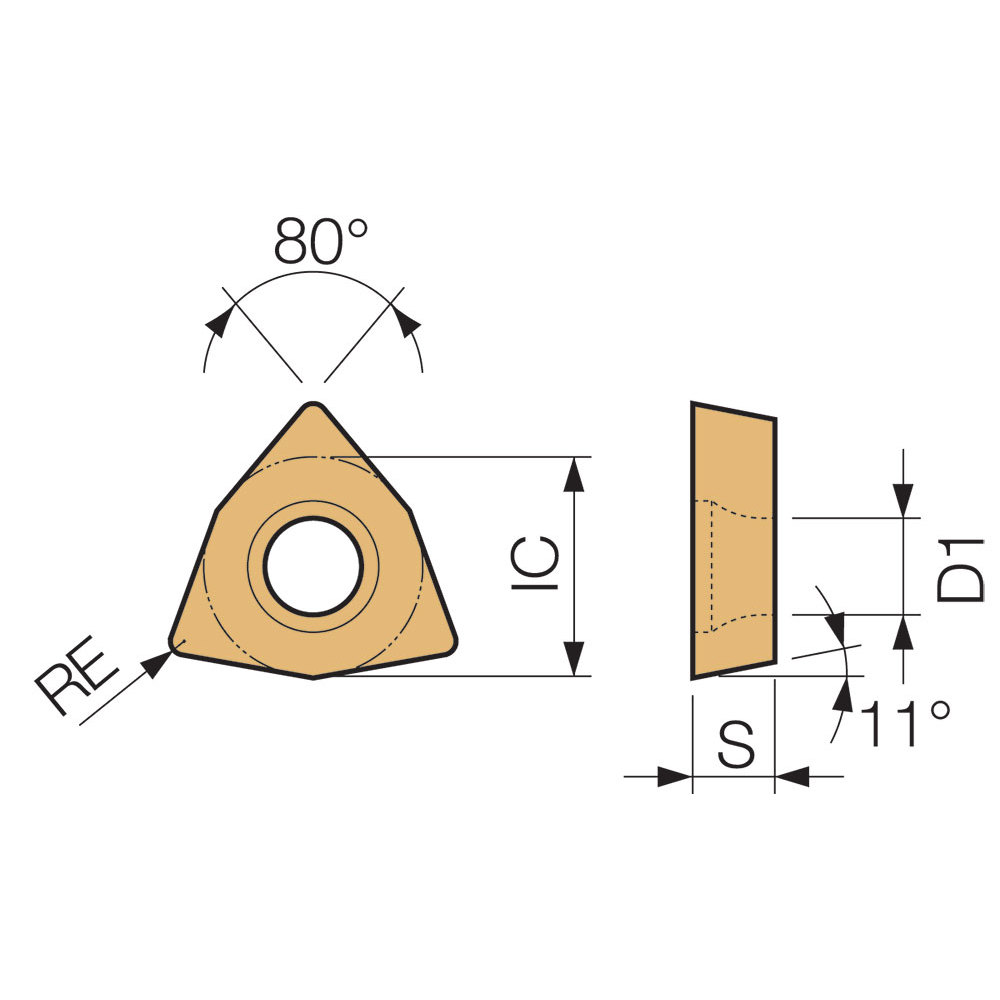

| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.1102″ |
| Application | Boring | Tool Type | Turning Insert |
| Insert Style | WPGT | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.008″ | Number of Cutting Edges | 3 |
| Insert Size | 21505 | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 3/32″ | Chip Breaker Type | Y |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Trigon |
| Coating | TiCN | Series/List # | ISOI |
| Grade | PR930 | Model No | 8807465 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.055
