DEGX430.5RF MD220

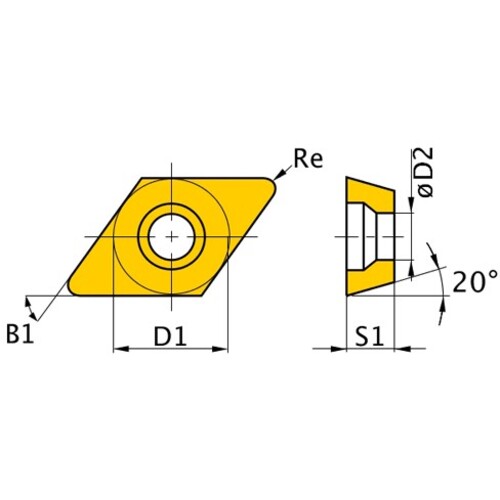

Turning Insert; 55 Rhombic × 12.7 mm IC × 0.2 mm Corner Radius ; MD220 ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 5.1 mm |
| Corner Radius (RE) | 0.2 mm | Clearance Angle Major (AN) | 20 Degrees |
| Insert Size | 430.5 | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | R-F |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 55 Degrees | Shape | 55° Rhombic |
| Cutting Edge Material | PCD | Series/List # | MD220 |
| Grade | MD220 | Cutting Edge Effective Length (LE) | 7.4 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.200
