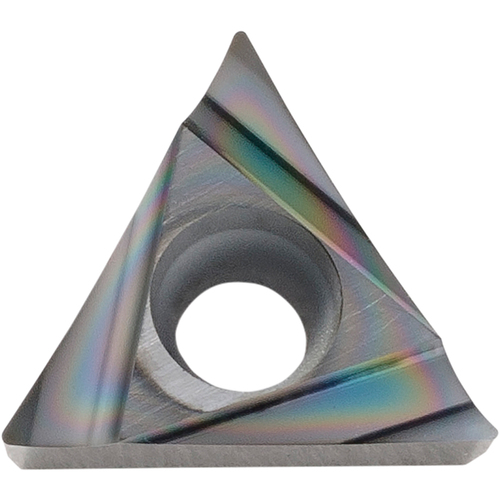

TCGT 221 A3 PDL025, 1/64″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, C, 60 Degree Triangle, Turning Indexable Insert
Turning Insert; 60 Triangle × 1/4″ IC × 1/64″ Corner Radius ; PDL025 ; Carbide ; DLC
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 0.1102″ |
| Application | External Turning | Tool Type | Turning Insert |
| Insert Style | TCGT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 3 |
| Insert Size | 221 | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | A3 |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | DLC | Series/List # | ISOI |
| Grade | PDL025 | Model No | 8845284 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.063
