CCMW 3251 KBN475, 1/64″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, 80 Degree Diamond, Turning Indexable Insert
Turning Insert; 80 Diamond × 3/8″ IC × 1/64″ Corner Radius ; KBN475 ; CBN

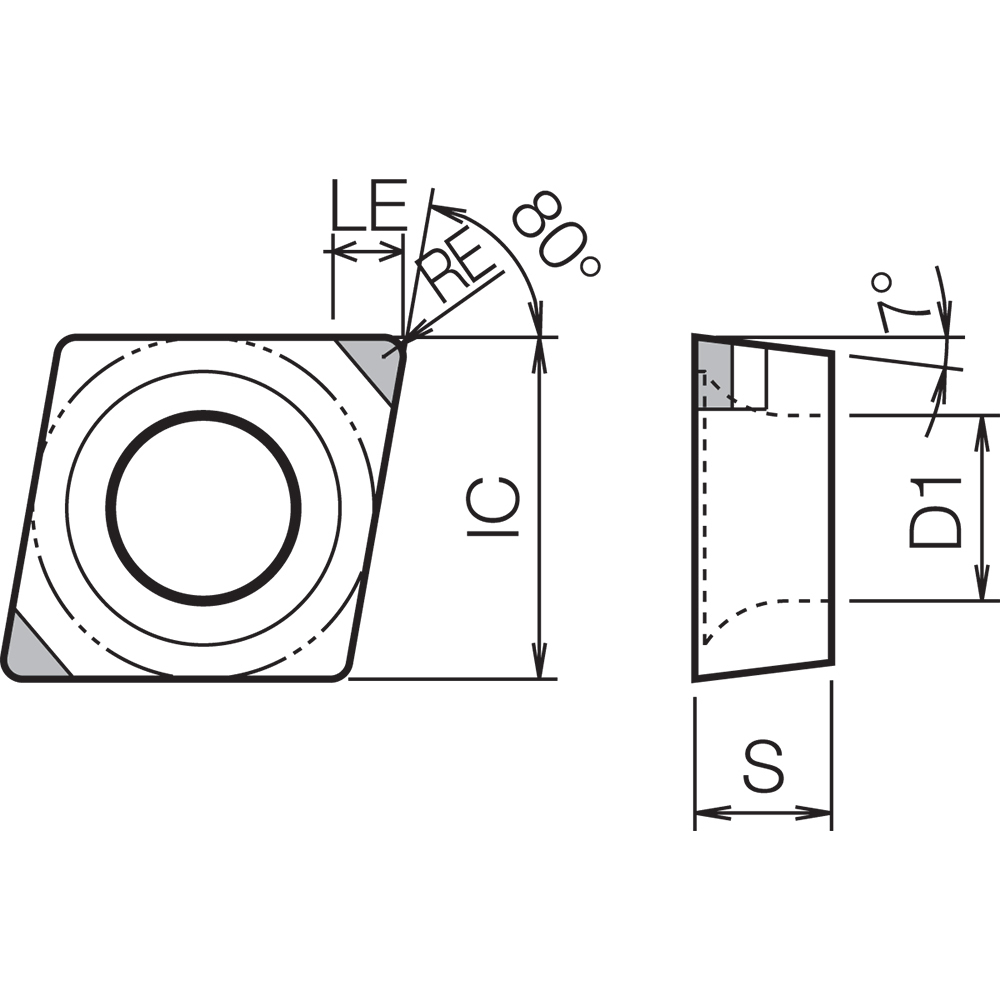

| Applicable Material | | Cast Iron | | Fixing Hole Diameter (D1) | 0.1732″ |
| Application | Boring | External Turning | Facing | Internal Facing | Tool Type | Turning Insert |
| Insert Style | CCMW | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 2 |
| Insert Size | 3251 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 5/32″ | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 80° Diamond |
| Cutting Edge Material | CBN | Series/List # | ISOI |
| Grade | KBN475 | Model No | 8844317 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.029
