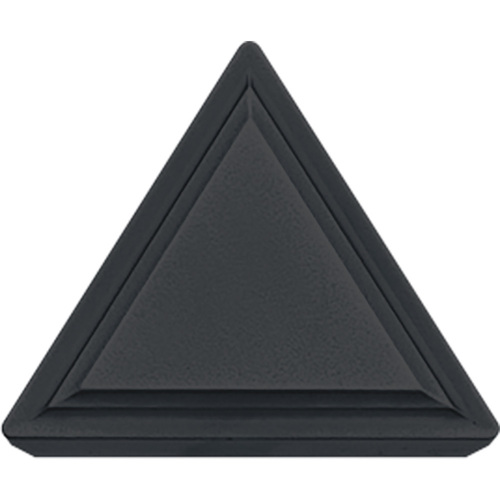

TPMR 322 CA4515, 1/32″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, TiCl2O3, 60 Degree Triangle, Turning Indexable Insert
Turning Insert; 60 Triangle × 3/8″ IC × 1/32″ Corner Radius ; CA4515 ; Carbide ; | Al2O3 | TiCN |
| Applicable Material | | Cast Iron | | Grade | CA4515 |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing | Tool Type | Turning Insert |
| Insert Style | TPMR | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 3 |
| Insert Size | 322 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/8″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | | Al2O3 | TiCN | | Model No | 8828967 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.149
