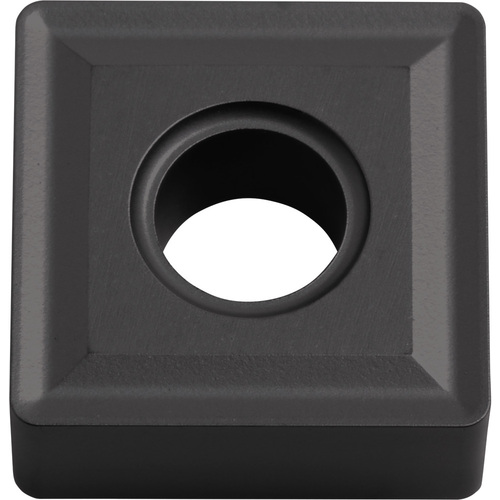

SNMG 433 CA4515, 3/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, TiCl2O3, 90 Degree Square, Turning Indexable Insert
Turning Insert; Square x 1/2″ IC × 3/64″ Corner Radius ; CA4515 ; Carbide ; | Al2O3 | TiCN |
| Applicable Material | | Cast Iron | | Fixing Hole Diameter (D1) | 0.2032″ |
| Application | Boring | Chamfering | External Turning | Facing | Tool Type | Turning Insert |
| Insert Style | SNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 3/64″ | Number of Cutting Edges | 8 |
| Insert Size | 433 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees | Shape | Square |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | | Al2O3 | TiCN | | Model No | 8828964 |
| Grade | CA4515 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.238
