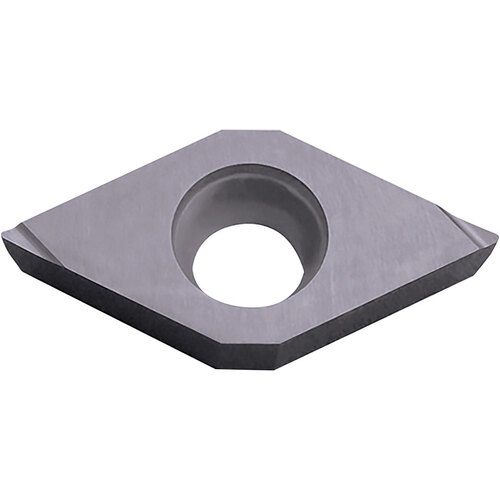

DCGT 2151 F PR930, 1/64″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, TiCN, 55 Degree Diamond, Turning Indexable Insert
Turning Insert; 55 Diamond × 1/4″ IC × 1/64″ Corner Radius ; PR930 ; Carbide ; TiCN
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.1102″ |
| Application | Back Boring | Copying | External Turning | Sub-Spindle | Tool Type | Turning Insert |
| Insert Style | DCGT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 2 |
| Insert Size | 2151 | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3/32″ | Chip Breaker Type | F |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 55 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 55° Diamond |
| Coating | TiCN | Series/List # | ISOI |
| Grade | PR930 | Model No | 8800878 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.056
