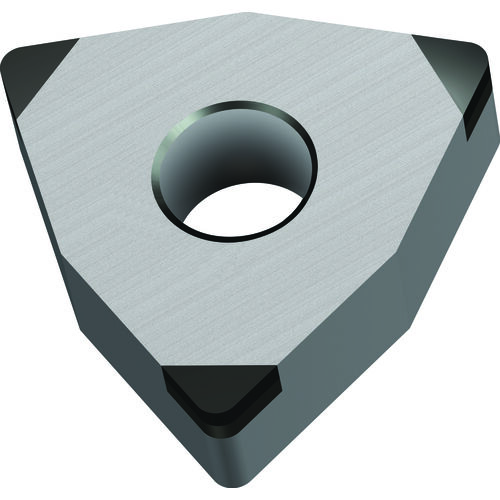

7823857 WALTER INDEXABLE
Turning Insert; 80 Trigon ; 8.687 mm Length × 12.7 mm IC × 0.8 mm Corner Radius ; WBK20 ; CBN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | Hard Materials | | Min D.O.C. | 0.1 mm |
| Insert Style | WNGA | Depth of Cut Maximum (APMX) | 2 mm |
| Corner Radius (RE) | 0.8 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 080408 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 8.687 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.763 mm | Chip Breaker Type | TS |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | CBN | Shape | 80° Trigon |
| Grade | WBK20 | Cutting Depth Maximum (CDX) | 2 mm |
| Fixing Hole Diameter (D1) | 5.16 mm | Cutting Edge Effective Length (LE) | 8.687 mm |
| Tool Type | Turning Insert | Model No | WNGA080408TS-3 WBK20 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.999
