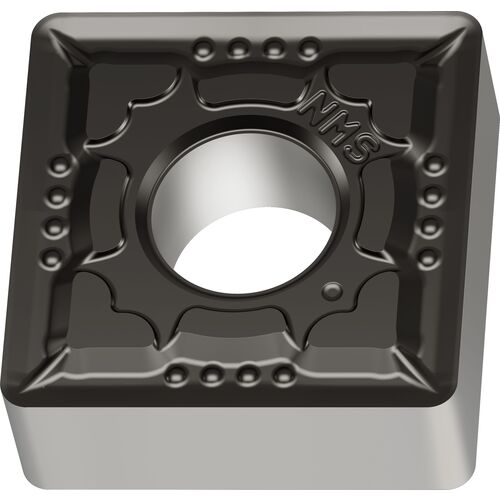

7837153 WALTER INDEXABLE
Turning Insert; Square ; 12.7 mm Length × 12.7 mm IC × 0.8 mm Corner Radius ; WSM20S ; Carbide ; | Al2O3 | TiAlN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Min D.O.C. | 0.8 mm |
| Insert Style | SNMG | Depth of Cut Maximum (APMX) | 3.5 mm |
| Corner Radius (RE) | 0.8 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 120408 | Number of Cutting Edges | 8 |
| Cutting Edge Length (L) | 12.7 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.763 mm | Chip Breaker Type | NMS |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | | Al2O3 | TiAlN | | Cutting Depth Maximum (CDX) | 3.5 mm |
| Grade | WSM20S | Cutting Edge Effective Length (LE) | 12.7 mm |
| Fixing Hole Diameter (D1) | 5.16 mm | Model No | SNMG120408-NMS WSM20S |
| Tool Type | Turning Insert |
Product Features
| Country of Origin | Germany |
