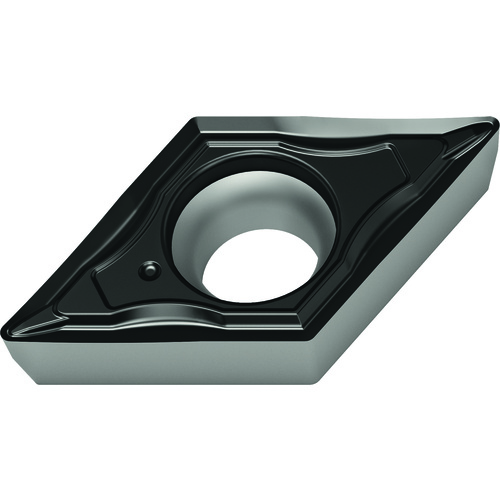

DPMT2(1.5)1-FM4 GRADE WMP20S
Turning Insert; 55 Rhombic ; 7.752 mm Length × 6.35 mm IC × 0.4 mm Corner Radius ; WMP20S ; Carbide ; | Al2O3 | TiN | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Min D.O.C. | 0.1 mm |
| Insert Style | DPMT | Depth of Cut Maximum (APMX) | 1.5 mm |
| Corner Radius (RE) | 0.4 mm | Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 70204 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 7.752 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 2.381 mm | Chip Breaker Type | FM4 |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | 55° Rhombic |
| Coating | | Al2O3 | TiN | TiCN | | Cutting Depth Maximum (CDX) | 1.5 mm |
| Grade | WMP20S | Cutting Edge Effective Length (LE) | 7.752 mm |
| Fixing Hole Diameter (D1) | 2.8 mm | Model No | DPMT070204-FM4 WMP20S |
| Tool Type | Turning Insert |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.025
