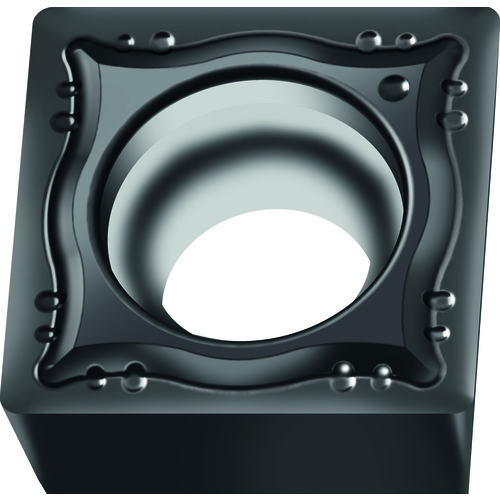

SCGT3(2.5)2-MM4 GRADE WSM01
Turning Insert; Square ; 9.525 mm Length × 9.525 mm IC × 0.8 mm Corner Radius ; WSM01 ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 0.5 mm |
| Insert Style | SCGT | Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 0.8 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 09T308 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 9.525 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3.969 mm | Chip Breaker Type | MM4 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | TiAlN | Cutting Depth Maximum (CDX) | 3 mm |
| Grade | WSM01 | Cutting Edge Effective Length (LE) | 9.525 mm |
| Fixing Hole Diameter (D1) | 4.4 mm | Model No | SCGT09T308-MM4 WSM01 |
| Tool Type | Turning Insert |
Product Features
| Country of Origin | Germany |
