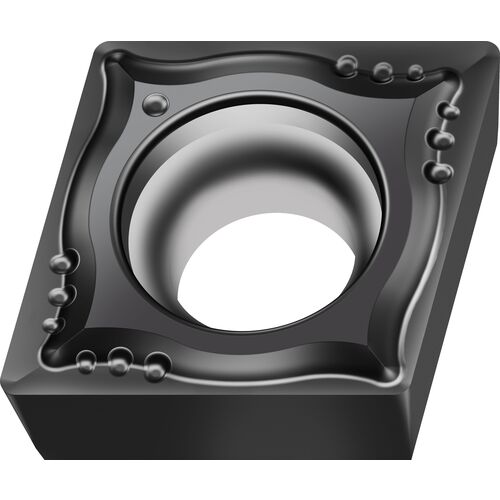

CCGT2(1.5)1-MM4 GRADE WSM01
Turning Insert; 80 Rhombic ; 6.448 mm Length × 6.35 mm IC × 0.4 mm Corner Radius ; WSM01 ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 0.4 mm |
| Insert Style | CCGT | Depth of Cut Maximum (APMX) | 2 mm |
| Corner Radius (RE) | 0.4 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 60204 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 6.448 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 2.381 mm | Chip Breaker Type | MM4 |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | 80° Rhombic |
| Coating | TiAlN | Cutting Depth Maximum (CDX) | 2 mm |
| Grade | WSM01 | Cutting Edge Effective Length (LE) | 6.448 mm |
| Fixing Hole Diameter (D1) | 2.8 mm | Model No | CCGT060204-MM4 WSM01 |
| Tool Type | Turning Insert |
Product Features
| Country of Origin | Germany |
