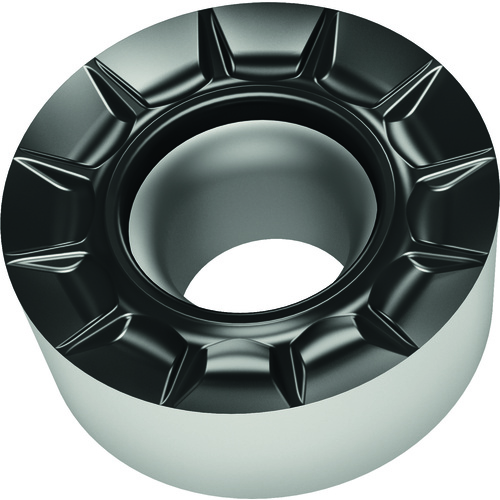

RCMT10T3M0-FM4 GRADE WSM10S
Turning Insert; Round ; 0.3937″ Length × 10 mm IC × 5 mm Corner Radius ; WSM10S ; Carbide ; | Al2O3 | TiAlN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Min D.O.C. | 1 mm |
| Insert Style | RCMT | Depth of Cut Maximum (APMX) | 4 mm |
| Corner Radius (RE) | 5 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 10T3M0 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 0.3937″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3.969 mm | Chip Breaker Type | FM4 |
| Inscribed Circle Diameter (IC) | 10 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | Round |
| Coating | | Al2O3 | TiAlN | | Series/List # | RCMT-FM4 |
| Grade | WSM10S | Cutting Depth Maximum (CDX) | 4 mm |
| Fixing Hole Diameter (D1) | 4.4 mm | Model No | RCMT10T3M0-FM4 WSM10S |
| Tool Type | Turning Insert |
Product Features
| Country of Origin | Germany |
