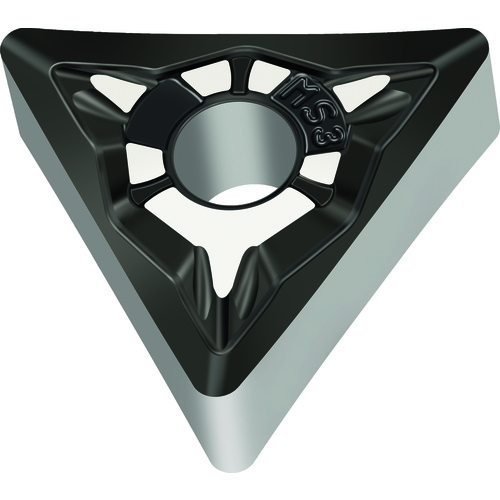

TNMG432-MS3 WSM10S
Turning Insert; Triangle ; 21.997 mm Length × 12.7 mm IC × 0.8 mm Corner Radius ; WSM10S ; Carbide ; | Al2O3 | TiAlN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Min D.O.C. | 0.8 mm |
| Insert Style | TNMG | Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 0.8 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 432 | Number of Cutting Edges | 6 |
| Cutting Edge Length (L) | 21.997 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.763 mm | Chip Breaker Type | MS3 |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | Triangle |
| Coating | | Al2O3 | TiAlN | | Series/List # | TNMG-MS3 |
| Grade | WSM10S | Cutting Depth Maximum (CDX) | 3 mm |
| Fixing Hole Diameter (D1) | 5.16 mm | Cutting Edge Effective Length (LE) | 21.997 mm |
| Tool Type | Turning Insert | Model No | TNMG220408-MS3 WSM10S |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Length
5.50000
Package Width
2.20600
Package Height
.56300
Package Weight
0.32
