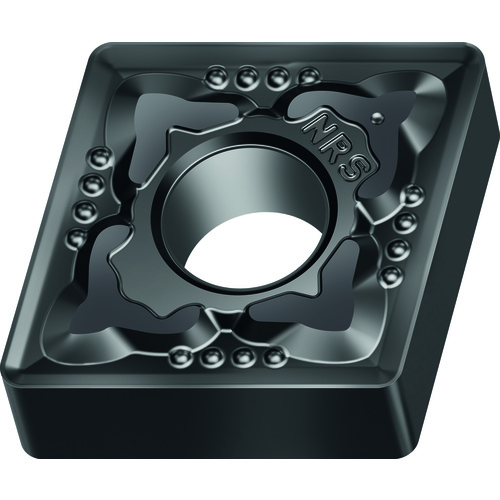

CNMG432-NRS GRADE WSM01
Turning Insert; 80 Rhombic ; 12.896 mm Length × 12.7 mm IC × 0.8 mm Corner Radius ; WSM01 ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 1 mm |
| Insert Style | CNMG | Depth of Cut Maximum (APMX) | 4 mm |
| Corner Radius (RE) | 0.8 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 432 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 12.896 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.763 mm | Chip Breaker Type | NRS |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | 80° Rhombic |
| Coating | TiAlN | Series/List # | CNMG-NRS |
| Grade | WSM01 | Cutting Depth Maximum (CDX) | 4 mm |
| Fixing Hole Diameter (D1) | 5.16 mm | Cutting Edge Effective Length (LE) | 12.896 mm |
| Tool Type | Turning Insert | Model No | CNMG120408-NRS WSM01 |
Product Features
| Country of Origin | Germany |
