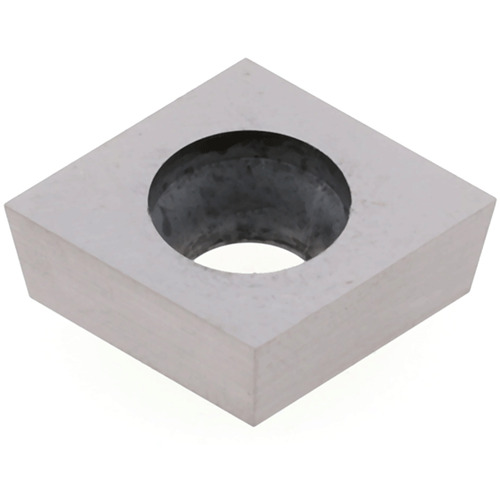

CCGW21.51T0225 ZC4
Turning Insert; CCGW21.51 T0225 ZC4

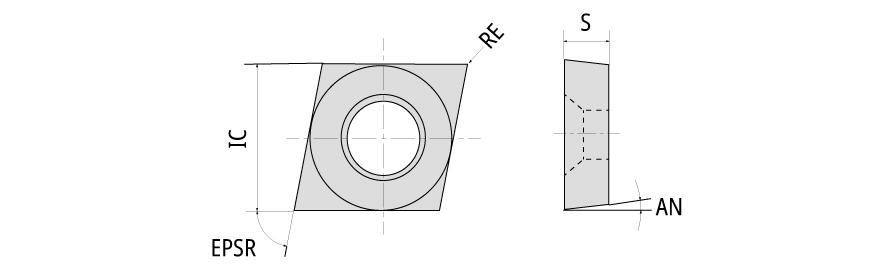

| Application | | Inserts for miniature | | Cutting Edge Material | Ceramic |
| Insert Style | CCGW | Coating | TiN |
| Corner Radius (RE) | 0.0157″ | Grade | ZC4 |
| Insert Size | 21.51 | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.094″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/4″ | Body Material | Carbide |
| Insert Included Angle (EPSR) | 80 Degrees | Cutting Edge Effective Length (LE) | 0″ |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.2
