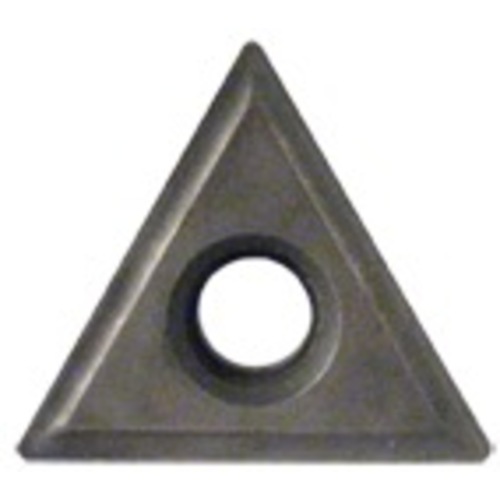

TT 323 Grade PC5 - Turning Insert
Turning Insert; Triangle ; 0.508″ Length × 3/8″ IC × 0.047″ Corner Radius ; PC5 ; Carbide
| Applicable Material | | Steel | | Inscribed Circle Diameter (IC) | 3/8″ |
| Insert Style | TT | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.047″ | Grade | PC5 |
| Insert Size | 323 | Tool Type | Turning Insert |
| Cutting Edge Length (L) | 0.508″ | Shape | Triangle |
| Insert Thickness (S) | 0.125″ |
Product Features
| Remarks | •Carbide Grades •PC2 - (C2) General purpose for cast iron and non-ferrous metals (exotics) •PC5 - (C5) Steel cutting •PC300 - (C5 Coated) TiN-TiC-TiN Steel cutting at higher speeds with greater lubricity •PC200 - (C2 Coated) Aluminum oxide coated for cast iron and non-ferrous metals exotics) | Country of Origin | USA |
Shipping Info
Package Length
.50000
Package Width
.50000
Package Height
.13000
Package Weight
0.008
