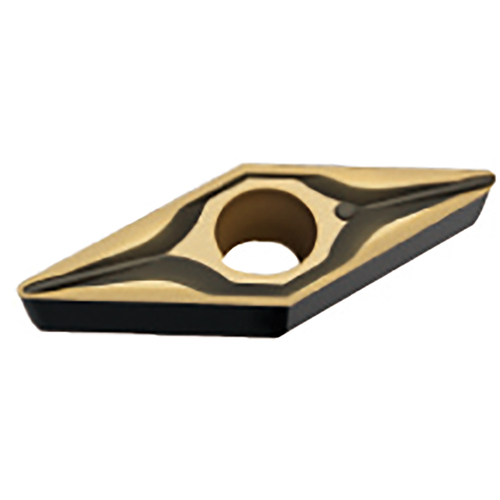

VBMT 220.5 FP MC6015, 0.2 mm Corner Radius, 3.18 mm Thick, 6.35 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; 35 Rhombic × 6.35 mm IC × 0.2 mm Corner Radius ; MC6015 ; Carbide
| Applicable Material | | Steel | | Fixing Hole Diameter (D1) | 2.9 mm |
| Application | Finish Cutting | Tool Type | Turning Insert |
| Insert Style | VBMT | Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 0.2 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 220.5 | Chip Breaker Type | FP |
| Insert Thickness (S) | 3.18 mm | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 35 Degrees | Shape | 35° Rhombic |
| Cutting Edge Material | Carbide | Series/List # | MC6015 |
| Grade | MC6015 |
Product Features
| Country of Origin | Japan |
