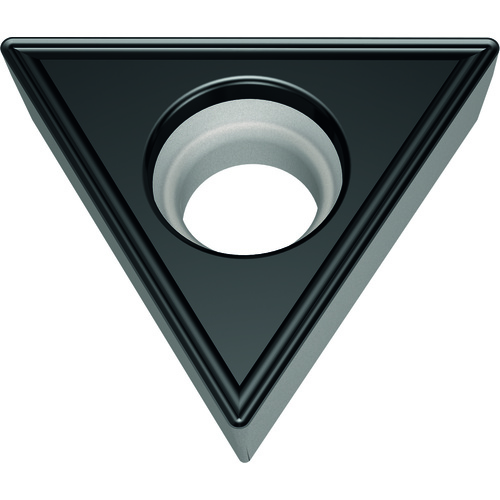

TCMT2(1.5)2-FM6 WSM30S
Turning Insert; Triangle ; 10.999 mm Length × 6.35 mm IC × 0.8 mm Corner Radius ; WSM30S ; Carbide ; | Al2O3 | TiAlN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Min D.O.C. | 0.5 mm |
| Insert Style | TCMT | Depth of Cut Maximum (APMX) | 1.6 mm |
| Corner Radius (RE) | 0.8 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 110208 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 10.999 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 2.381 mm | Chip Breaker Type | FM6 |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | Triangle |
| Coating | | Al2O3 | TiAlN | | Series/List # | TCMT-FM6 |
| Grade | WSM30S | Cutting Depth Maximum (CDX) | 1.6 mm |
| Fixing Hole Diameter (D1) | 2.8 mm | Cutting Edge Effective Length (LE) | 10.999 mm |
| Tool Type | Turning Insert | Model No | TCMT110208-FM6 WSM30S |
Product Features
| Country of Origin | Germany |
