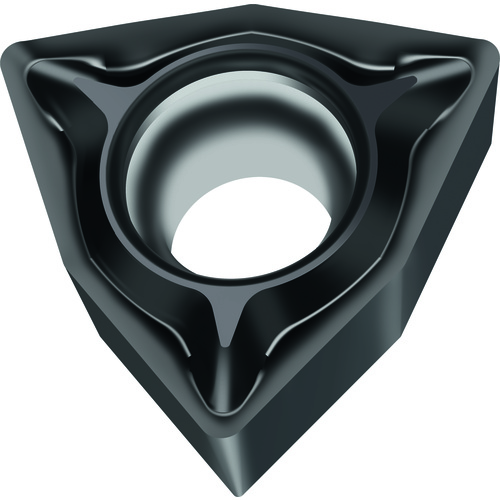

WCGT2(1.5)1-FM2 WSM21
Turning Insert; 80 Trigon ; 4.344 mm Length × 6.35 mm IC × 0.4 mm Corner Radius ; WSM21 ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Min D.O.C. | 0.2 mm |
| Insert Style | WCGT | Depth of Cut Maximum (APMX) | 2.5 mm |
| Corner Radius (RE) | 0.4 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 40204 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 4.344 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 2.381 mm | Chip Breaker Type | FM2 |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | 80° Trigon |
| Coating | TiAlN | Series/List # | WCGT-FM2 |
| Grade | WSM21 | Cutting Depth Maximum (CDX) | 2.5 mm |
| Fixing Hole Diameter (D1) | 2.8 mm | Cutting Edge Effective Length (LE) | 4.344 mm |
| Tool Type | Turning Insert | Model No | WCGT040204-FM2 WSM21 |
Product Features
| Country of Origin | Germany |
